16/8/4 ring Piezoelectric Ceramic pzt8 for medical machine or for cleaning

Name: 1684 ring Piezoelectric Ceramic pzt8 for medical machine or for cleaning
Brand: CCWY
Price: 50 USD

16/8/4 ring Piezoelectric Ceramic pzt8 for medical machine or for cleaning Manufactures

Place of Origin : CN

Brand Name : CCWY

Certification : CE ROSH TUV

Model Number : CCWY

MOQ : 1PCS

Price : $50--$120

Packaging Details : CARTON

Delivery Time : On stock

Payment Terms : T/T

Supply Ability : 20.000.000 PER MONTH

Contact Now

16*8*4 Ring Piezoelectric Ceramic

Quick Detail of 16*8*4 Ring Piezoelectric Ceramic:
all kinds of piezoceramics and piezoelectric ceramic.we can produce according to the required size.
the materials have the pzt4,pzt5 ,pzt8 or other required material.

Description of 16*8*4 Ring Piezoelectric Ceramic:

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.
◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.
◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.
◊ Good construction: fastened by bolt, easy for assembling, high reliability.

Applications of 16*8*4 Ring Piezoelectric Ceramic:

widely used in all kinds of ultrasonic sensor.ultrasonic transducer.Medical,ultrasonic detectors and so on

Specifications of 16*8*4 Ring Piezoelectric Ceramic:

Dimensions

(mm)

Capacity

C (pF)

Weak field dissipation

Tgδ (12v)

Strong field dissipation

Tg δ (400v)

Radial frequency

Fr(KHz)

Resonance impedance

Zm (∩ )

Thick frequency

Ft (KHz)

Coupling modulus

Kr (%)

Quality factor

Φ16*Φ8*4

340±10%

≤0.5%

≤1.0%

95.8±5%

≤20

512

≥45

≥800

Competitive Advantage of 16*8*4 Ring Piezoelectric Ceramic:

◊ High efficiency
◊ High amplitude:
◊ Good heat resistance
◊ Good construction:

Product Tags:

piezoelectric element

piezo electric ceramic

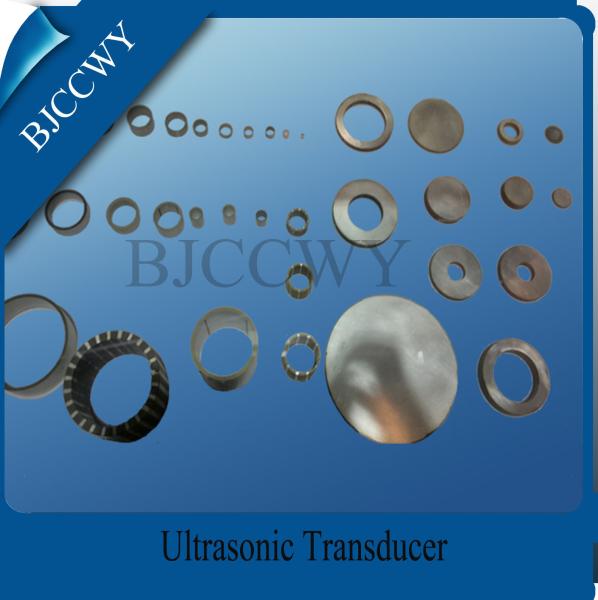

16/8/4 ring Piezoelectric Ceramic pzt8 for medical machine or for cleaning Images
