Ultrasonic Sensor Heat Resistance Piezo Ceramic Plate Small Size Round Shape

Name: Ultrasonic Sensor Heat Resistance Piezo Ceramic Plate Small Size Round Shape
Brand: CCWY
Price: 1 USD

Brand Name : CCWY

Model Number : CCWY

Certification : CE ROSH TUV

Place of Origin : CN

MOQ : 1PCS

Payment Terms : T/T

Supply Ability : 20.000.000 PER MONTH

Delivery Time : On stock

Packaging Details : CARTON

Application : Ultrasonic Application

Size : Special

feature : good heat resistance

Material : P4, P8 or P5 etc

Shape : round, ring, or tube

Packing : Protection packing

Contact Now

Heat Resistance Piezo Ceramic Plate Customized Size and Shape

Quick Detail :

all kinds of piezoceramics and piezoelectric ceramic.we can produce according to the required size.

the materials have the pzt4,pzt5 ,pzt8 or other required material.

Description :

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊ High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt. Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.

Applications:

widely used in all kinds of ultrasonic sensor.ultrasonic transducer.Medical,ultrasonic detectors and so on

Specifications:

Dimensions

(mm)

Capacity

C (pF)

Weak field dissipation

Tgδ (12v)

Strong field dissipation

Tg δ (400v)

Radial frequency

Fr(KHz)

Resonance impedance

Zm (∩ )

Thick frequency

Ft (KHz)

Coupling modulus

Kr (%)

Quality factor

Φ16*Φ8*4

340±10%

≤0.5%

≤1.0%

95.8±5%

≤20

512

≥45

≥800

Φ25*Φ10*4

935±10%

≤0.5%

≤1.0%

65.5±5%

≤15

512

≥45

≥800

Competitive Advantage :

◊ High efficiency

◊ High amplitude:

◊ Good heat resistance

◊ Good construction:

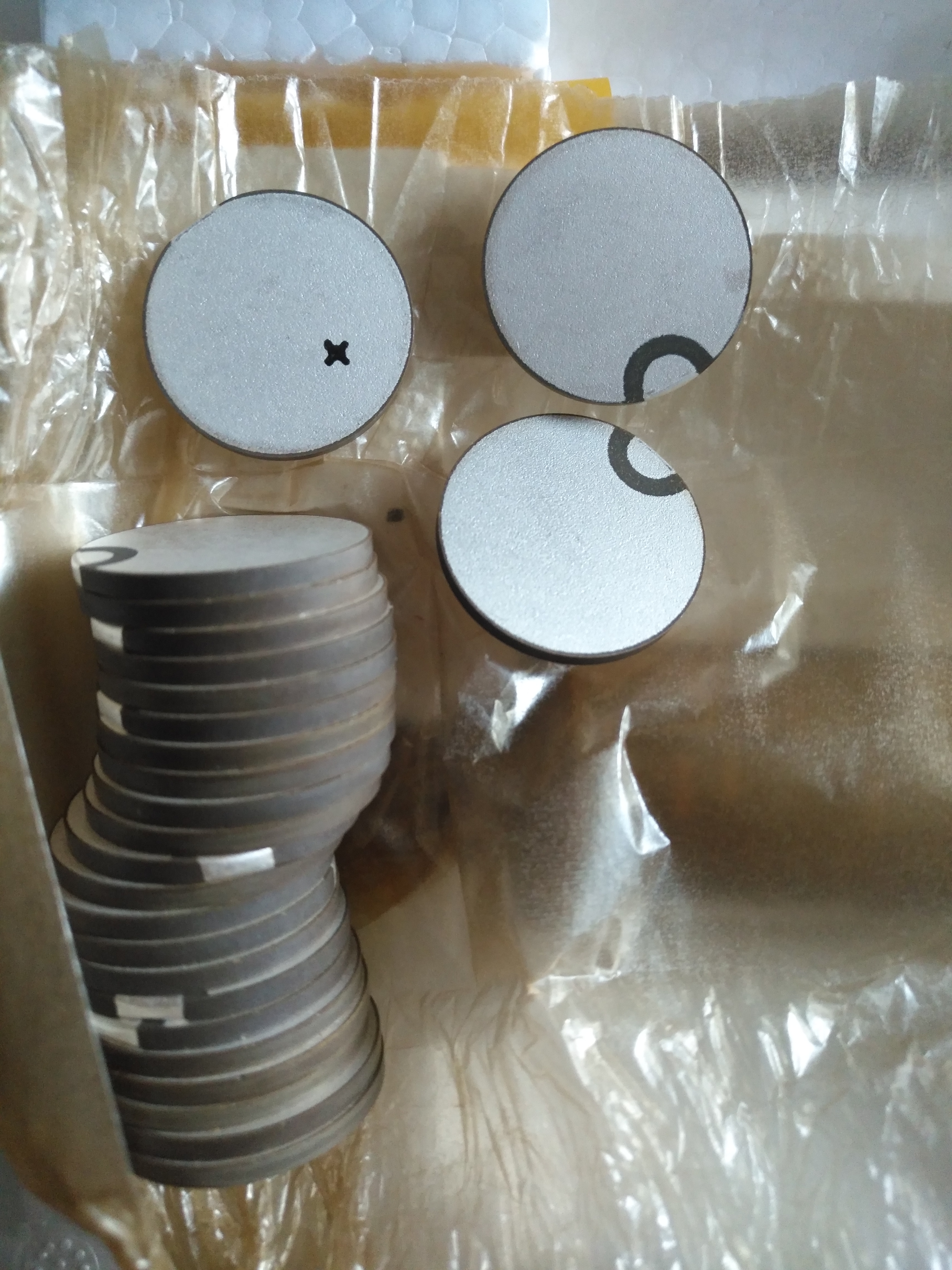

Ultrasonic Sensor Heat Resistance Piezo Ceramic Plate Small Size Round Shape
