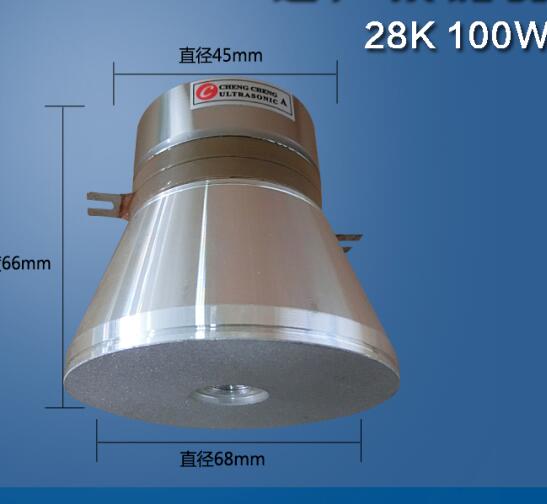

Ss 100w 28k Piezoelectric Transducer Ultrasound Cleaning Without Hole At Bottom

Name: Ss 100w 28k Piezoelectric Transducer Ultrasound Cleaning Without Hole At Bottom
Brand: CCWY
Price: 1 USD

Brand Name : CCWY

Model Number : CCWY

Certification : CE, ROSH, ISO9001

Place of Origin : CN

MOQ : 1PCS

Payment Terms : T/T

Supply Ability : 20.000.000 PER MONTH

Delivery Time : On stock

Packaging Details : CARTON

name : Ce 100w 28k Piezoelectric Ultrasonic Transducer For Cleaning

power : 100W

Frequency : 28K

Material : Stainless steel

Application : Ultrasonic Cleaner

Contact Now

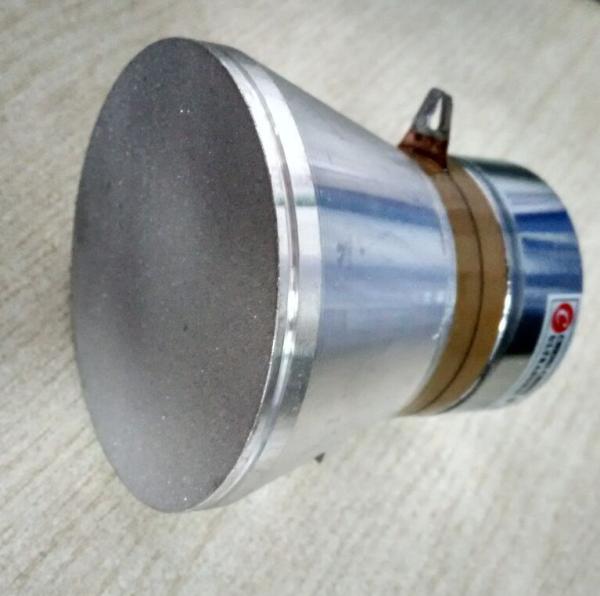

100w 28k Piezo Ultrasonic Transducer For Cleaning without hole at the bottom

Description:

Ultrasonic vibration transducer is one kind of piezoelectric transducers. It comprises a radiation head, an electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube. The ultrasonic vibration transducer is widely used in vibrating screen equipment factory (so now the vibrating equipment can have both the mechanical and ultrasonic vibration).

The application of the ultrasonic transducer is very extensive, it according to the application of the industry is divided into industry, agriculture, transportation, life, medical and military etc. According to the functions are divided into ultrasonic machining, ultrasonic cleaning, ultrasonic detection, testing, monitoring, remote sensing, remote control, etc.; According to the working environment is divided into liquid, gas, biology, etc.; According to the nature of the divided into power ultrasound and detection of ultrasonic, ultrasonic imaging, etc.

Specifications:

Type

Length(mm)

Weight (g)

Frequency(KHz)±4%

Resonance Impedance

(Ω)

Static Capacity

(pF)±10%

Input Power(W)

CCH-7145D-20LA PZT-8

900

≤20

5200

100

CCH-6645D-25LB PZT-4

717

≤20

6800

100

CCH-6650D-28LB PZT-4

746

≤20

7900

120

CCH-6645D-28LB PZT-8

625

≤20

5200

100

CCH-6645D-28LB PZT-4

614

≤20

6800

100

CCH-6645D-30L PZT-8

551

≤20

5200

100

CCH-5938D-25LB PZT-4

530

≤20

4900

CCH-5938D-28LB PZT-8

470

≤20

3700

CCH-4535D-28ZB PZT-4

407

≤20

3950

CCH-4838D-33LB PZT-8

420

≤20

4700
