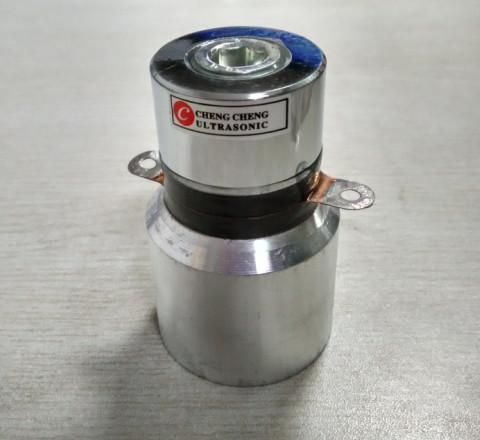

Cleaner 25k 100w Piezoelectric Ultrasonic Transducer

Name: Cleaner 25k 100w Piezoelectric Ultrasonic Transducer
Brand: BJCCWY
Price: 5.8 USD

Brand Name : BJCCWY

Model Number : 100w 28k

Certification : ISO9001, CE, RoHs

Place of Origin : China

MOQ : 1pc

Price : 5.8-7.5USD

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000000

Delivery Time : 3-5 days

Packaging Details : Carton or wooden case

Products : Ultrasonic cleaning transducer

Frequency : 25K

Power : 100W

Material : Aluminum, Stainless steel

Usage : Cleaner

Height : 66mm

Contact Now

Cleaner Piezoelectric Transducer Ultrasound transducer Senor

Features

◊ High efficiency: high mechanical parameter Q, the transduction efficient between electricity and sound above 95%.

◊High amplitude: the transducer strength is improved by fixing the high speed vibrator directly on the base of washing groove with bolt.Compare with a magnetic expansion vibrator, its amplitude can be improved above 50%.

◊ Good heat resistance: a large range of working temperature, low resonance impedance and heat productivity.

◊ Good construction: fastened by bolt, easy for assembling, high reliability.

Naming methods as following

Type

Length(mm)

Weight (g)

Frequency(KHz)±4%

Resonance Impedance

(Ω)

Static Capacity

(pF)±10%

Input Power(W)

CCH-7145D-20LA PZT-8

900

≤20

5200

100

CCH-6645D-25LB PZT-4

717

≤20

6800

100

CCH-6650D-28LB PZT-4

746

≤20

7900

120

CCH-6645D-28LB PZT-8

625

≤20

5200

100

CCH-6645D-28LB PZT-4

614

≤20

6800

100

CCH-6645D-30L PZT-8

551

≤20

5200

100

Cleaner 25k 100w Piezoelectric Ultrasonic Transducer
